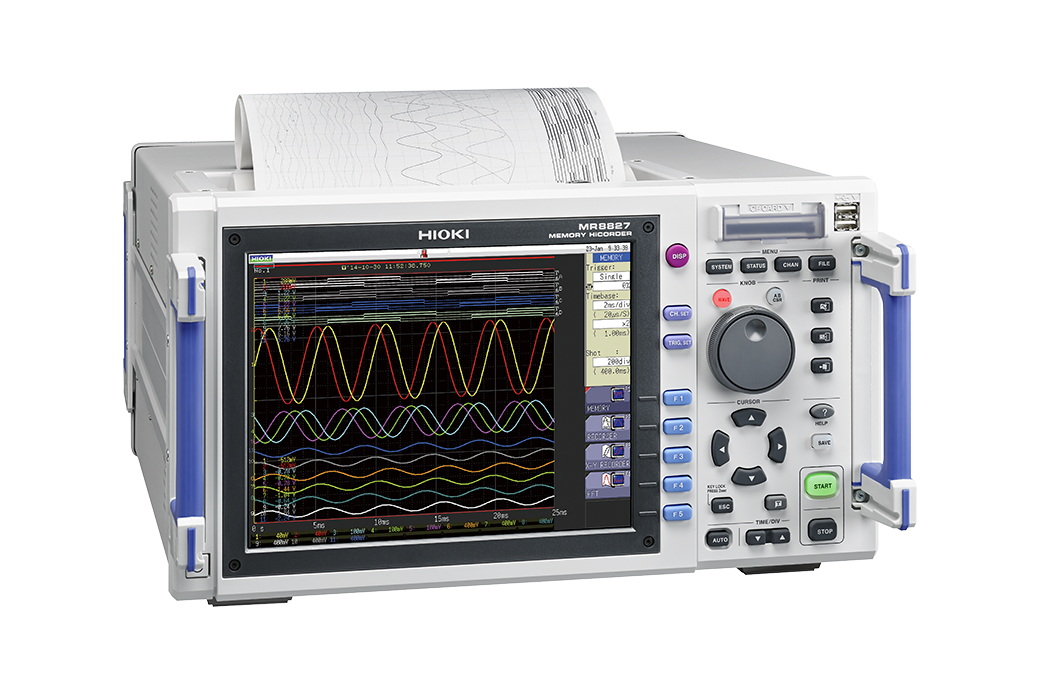

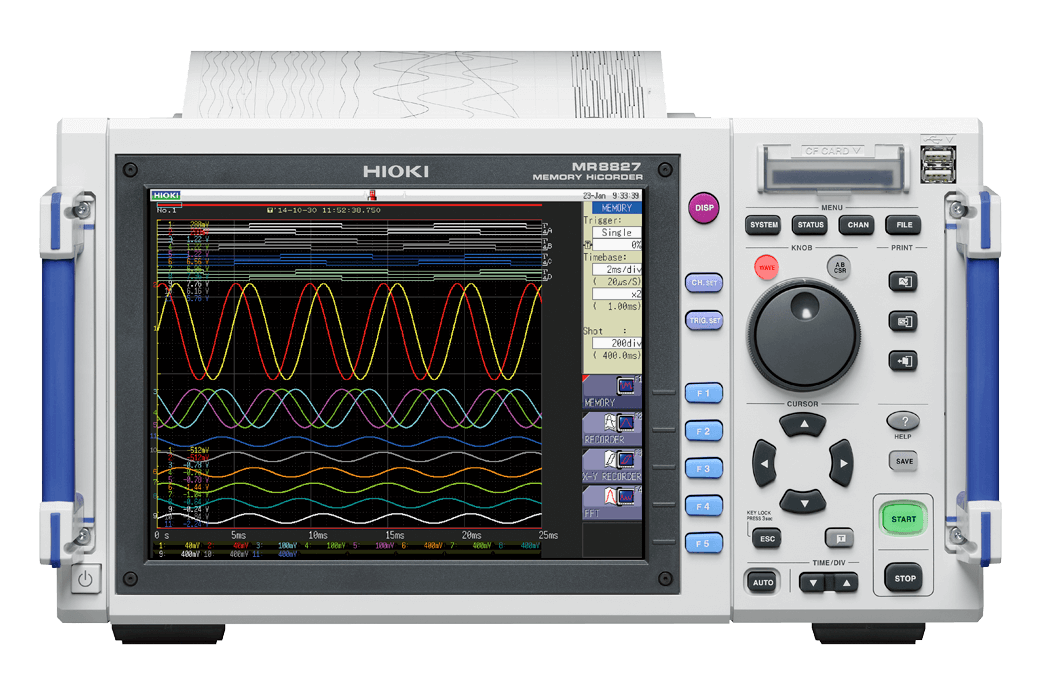

HIOKI MR8827 MEMORY HiCORDER
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. More than a digital oscilloscope, the MR8827 data acquisition (DAQ) logger houses plug and play input modules to meet applications such as test runs after scheduled maintenance of railway cars to verify voltage command signals, motor current, cabin speed. and brake pressure.
Key Features
- Create and save waveforms with a single unit
- Output previously recorded problem waveforms and apply them to tested devices to simulate potential problems
- From 32 analog + 32 logic channels to 28 analog + 64 logic channels
- High-speed sampling up to 20MS/s with fully isolated inputs
- Safe measurement with all isolated analog inputs
- Large-capacity memory with a total of 512M words
- Measure various system signals simultaneously, from high voltage to ultra low voltage
