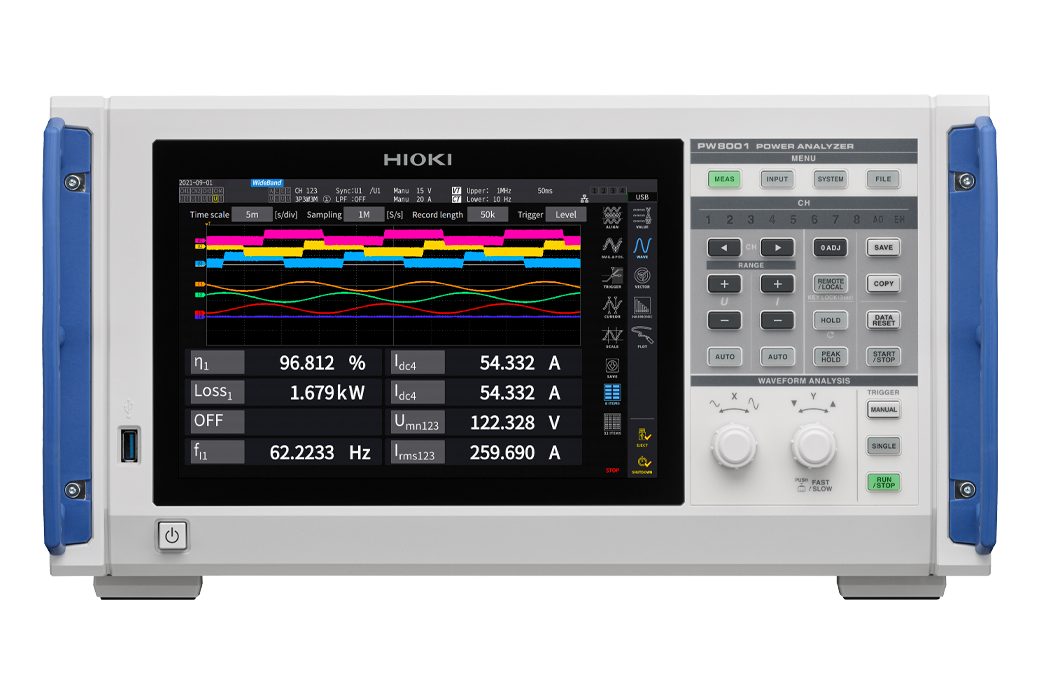

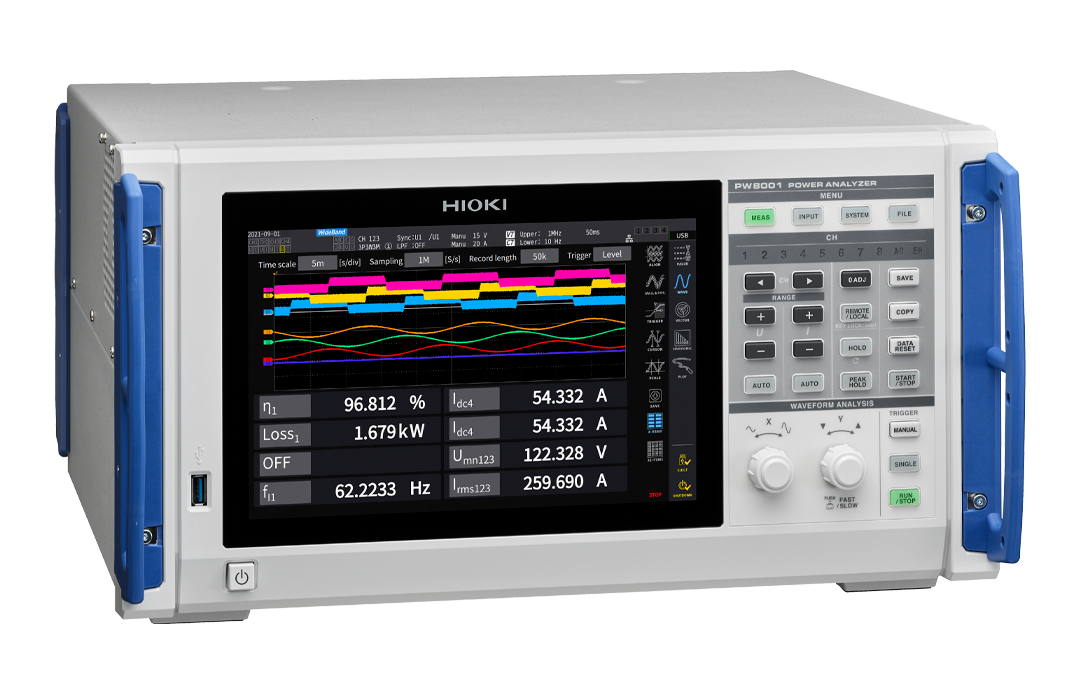

HIOKI PW8001 POWER ANALYZER

Açıklama

HIOKI PW8001 POWER ANALYZER

• Birinci sınıf ölçüm doğruluğu: Temel doğruluk ±%0,03, DC doğruluğu ±%0,05, 50 kHz doğruluk %0,2 (*1)
• Yüksek hızlı anahtarlamanın neden olduğu güç dalgalanmalarının doğru şekilde yakalanması: Örnekleme performansı 18 bit, 15 MHz, Gürültü Direnci (CMRR) 110 dB, 100 kHz (*1)
• Ölçümünüzü optimize eden 8 adede kadar güç kanalı: 8 kanallı güç ölçümü
• Yüksek frekanslı, düşük güç faktörlü gücü doğru bir şekilde ölçün: Akım sensörü otomatik faz düzeltme işlevi (*2)
• 4 motorun eşzamanlı analizi: 4 motorlu/2 motorlu eşzamanlı analiz fonksiyonu
• Ölçüm verilerinin CAN ağlarına entegrasyonu: CAN veya CAN FD çıkış fonksiyonu
• Giderek artan yüksek voltajlı solar invertörlerin güvenli değerlendirmesi: 1500 V DC CAT II / 1000 V DC CAT III (*3)
• DC Güç Ölçümü için Japonya Kalibrasyon Hizmet Sistemi (JCSS) Sertifikasını Kazanma. (*4)

Providing the ultimate power analyzer for use by all engineers pursuing power conversion efficiency

World-class measurement accuracy

– Basic accuracy ±0.03%, DC accuracy ±0.05%, 50 kHz accuracy 0.2% (*1)
Evaluating power conversion efficiency requires the ability to accurately measure power in every band, from DC to high frequencies. The PW8001 delivers exceptional measurement accuracy not only for 50/60 Hz, but also across a broad frequency band, including for DC and at 50 kHz. This allows it to accurately evaluate power conversion efficiency which often involves measuring multiple frequencies.

Accurate capture of power fluctuations caused by high-speed switching

– Sampling performance 18-bit, 15 MHz (*1)
– Noise Resistance (CMRR) 110 dB, 100 kHz* (*1)
Evaluating power conversion efficiency requires the ability to accurately measure power in every band, from DC to high frequencies. The PW8001 delivers exceptional measurement accuracy not only for 50/60 Hz, but also across a broad frequency band, including for DC and at 50 kHz. This allows it to accurately evaluate power conversion efficiency which often involves measuring multiple frequencies.

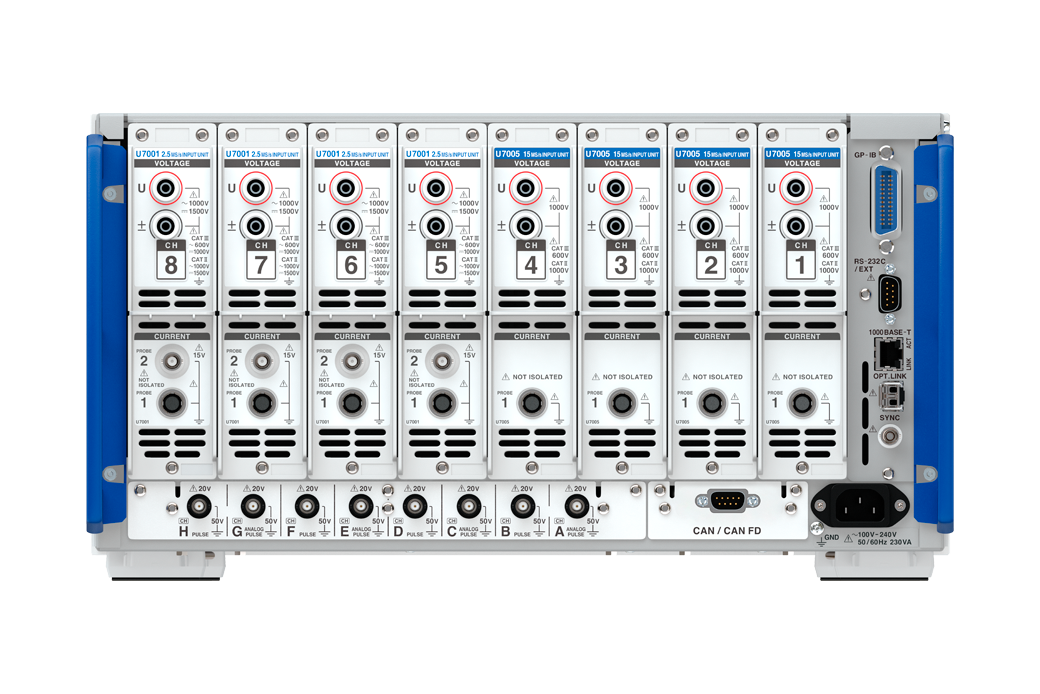

Up to 8 power channels optimizing your measurement

– 8-channel power measurement
Increasingly, hardware like electric vehicle (EV) drive systems that use dual inverters and electric power interchange systems in smart homes are adopting multi-circuit designs in order to utilize energy effectively. A single PW8001 can measure 8 channels of power data, allowing equipment with 8 measurement points for power such as dual motors as well as other equipment with multiple circuits to be evaluated in one stroke.

PMSM online parameter measurement (*2)

– Electrical angle measurement function
In order to implement fine control of a permanent magnet synchronous motor (PMSM), it’s necessary to assess the motor’s characteristics under actual operating conditions. The PW8001’s electrical angle measurement function can perform voltage and current advance measurement, which is necessary in order to implement vector control of the dq coordinate system. The instrument can calculate Ld and Lq values from electrical angle measurements and ascertain motor parameters under actual operating conditions.

Compensation of torque meter measurement error (*2)

– Dual torque value correction functions
Torque meter measurement error has a substantial impact on motor analysis. The PW8001 can perform calculations using a correction table based on user-defined values for nonlinear compensation and friction compensation. The instrument can accurately analyze high-efficiency motors as well.

Safe evaluation of increasingly high-voltage power conditioners

– 1500 V DC CAT II, 1000 V DC CAT III (*3)
